ATZ HDMI-V2.1-51

SGD 75.00

AVAILABILITY: IN STOCK


5-to-1 HDMI 8K@60Hz Switch, 48Gbps

Quantity:

Description

This HDMI 2.1 8K switcher is a multiplexer that supports 8K@60Hz, 4K@120Hz. It is easy to set up and operate.
This switcher allows you to select a video between 5 HDMI video sources connected and send it to a HDMI output, allowing for HDMI v2.1b and HDCP 2.3, along with 8K 4K Ultra HD and compatibility on all HDMI devices.
Highly compatible with all operating system such as Windows, Mac OS, Linux. Also works perfectly with Xbox one X, PS4 Pro, 4K, Roku 4, Amazon Fire TV, Blu-ray players, Projector etc. This Switch can also be placed at the end of the HDMI cable to regenerate the HDMI signal.
Perfect for smooth gaming and cinematic experiences.


Features:

    • Multiple HDMI input signals switched to a single HDMI sink devices
    • Supports higher video resolutions and faster refresh rates, 8K@60Hz and 4K@120Hz
    • Support deep color 30bit, 36bit
    • 48Gbps Bandwidth
    • Support VRR, CEC, HDR10, Dolby Vision, and 3D pass-through
    • Support Blue-Ray 24 / 50 / 60fs / HD-DVD / xvYCC / PS5
    • Digital audio format as DTS-HD / Dolby TrueHD / LPCM 7.1 / DTS / Dolby-AC3 / DSD / Dolby Atmos / DTS X / VRR Pass through
    • Support signal retiming

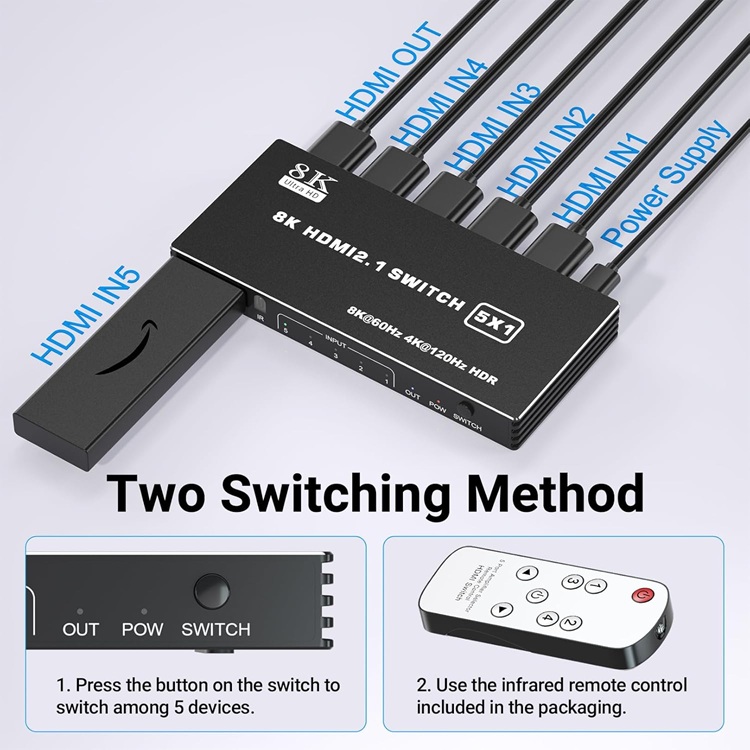

    • Inputs can be switched with the IR remote control, also can be controlled by button
    • It can smartly jump over those input sources which are not connected
    • No loss of quality
    • Plug and play

Specification

Num of Input Port

4 x HDMI v2.1 Type A Female

Num of Output Port

1 x HDMI v2.1 Type A Female

HDMI Compliance

HDMI v2.1

Video Resolution

8K@60Hz(YCC420),CEC, 4K@120Hz/60Hz 4:4:4

5120×1440@60Hz, 3440×1440@144Hz/120Hz/60Hz;

2560×1440@240Hz

1080p@240Hz/144Hz/120Hz/60Hz

Video Format

HDR10, Dolby Vision, and 3D pass-through

Video Colour Format

24bit/deep color 30bit, 36bit

Support Audio Format

DTS-HD / Dolby TrueHD / LPCM 7.1 / DTS / Dolby-AC3 / DSD / Dolby Atmos / DTS X / VRR Pass through

HDCP Compliance

HDCP 2.3

Max Baud Rate

48Gbps

Input/Output TMDS signal

0.5~1.5Volts p-p(TTL)

Input/Output DDC signal

5Volts p-p(TTL)

Max Working Current

350mA

Operating Temperature Range

(-15 to +55°C)

Operating Humidity Range

5 to 90% RH (no condensation)

Dimension (L x W x H)

15.5 x 8.5 x 3.7 (mm)

Weight

241g

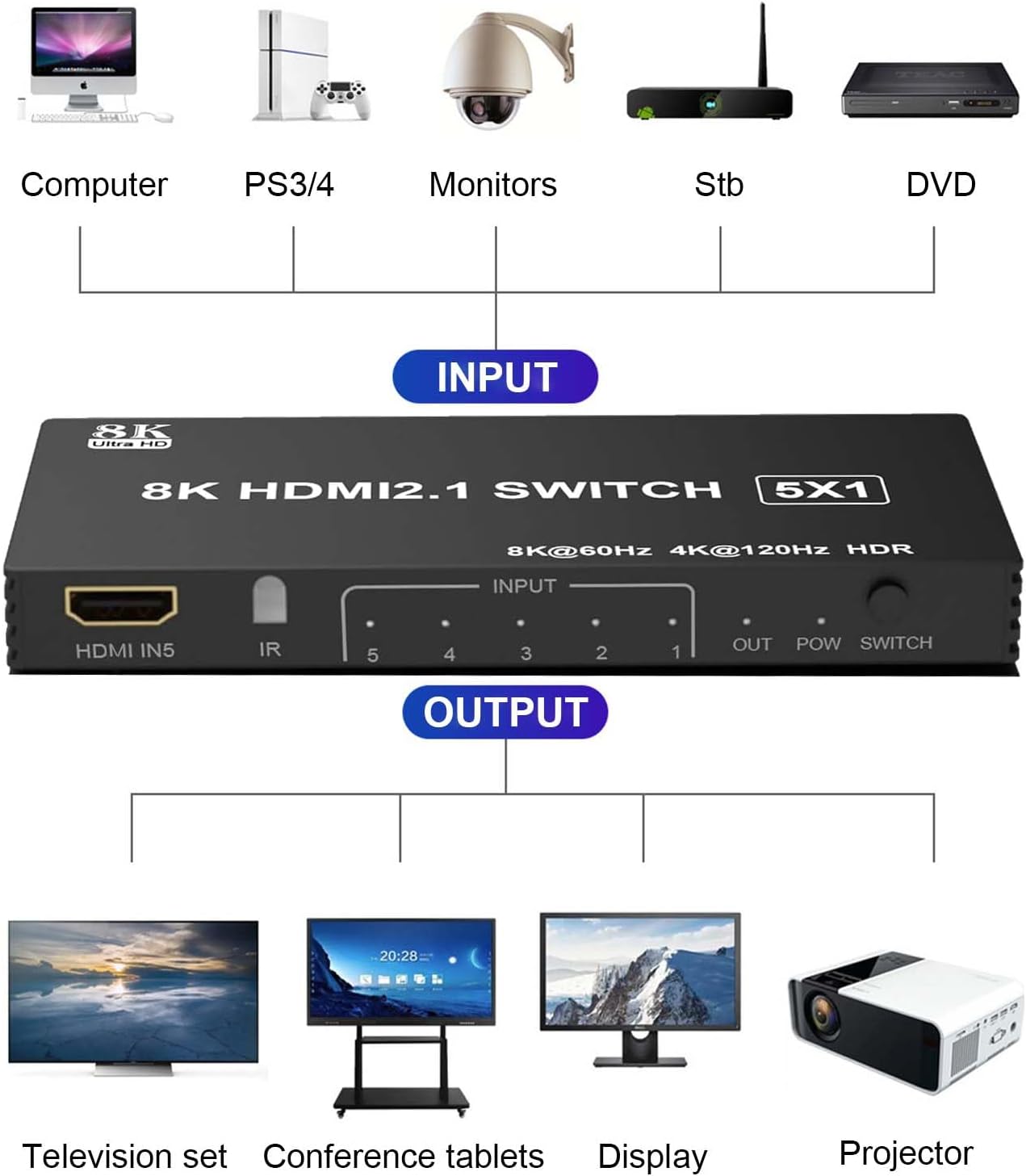

Application Drawing
