DTE-AUD2CH-USB
SGD 195.00
AVAILABILITY: IN STOCK
Dante 2CH USB Audio Encoder/Decoder with POE
Description
This Dante 2CH USB Audio Encoder/Decoder is a Dante sound card adapter based on the Dante Ultimo solution.
It supports USB audio transmission. Built-in USB sound card chip, it transmits audio signal through network (Dante). It supports USB power supply and POE function. The product is compact and easy to carry, plug and play, suitable for recording studios, art festivals, concerts and other scenes.
Features:
- Compliant with USB 2.0 Full Speed Operation
- Compliant with USB Audio Device Class Specification v1.0
- Analog sound card, supporting MIC input and SPK output
- Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
- Dante solution supports AES67 RTP audio transmission
- Support USB 5v power supply and POE function (IEEE802.3af Class
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 20 × 20 × 10 cm |
Specification
| Connection | |
| Input & Output | 1x USB-B 1x DANTE [RJ45 connector, POE] |
| Technical | |
| Video Network Bandwidth | 100m |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (Cat 6 / 6A) |
| Frequency Response | 20Hz to 20kHz |
| Control Method | Dante Controller |
| Mechanical | |
| Housing | Metal Enclosure |
| Colour | Black |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 188g |
| Power Supply | USB input: 5v-500ma POE input: IEEE802.3af Class 0 |
| Power Consumption | 1w |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |

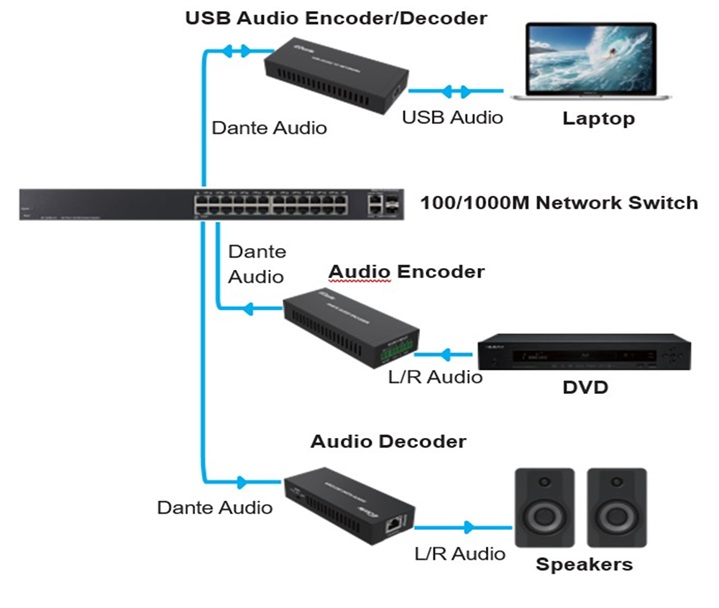

Application Drawing
