Description

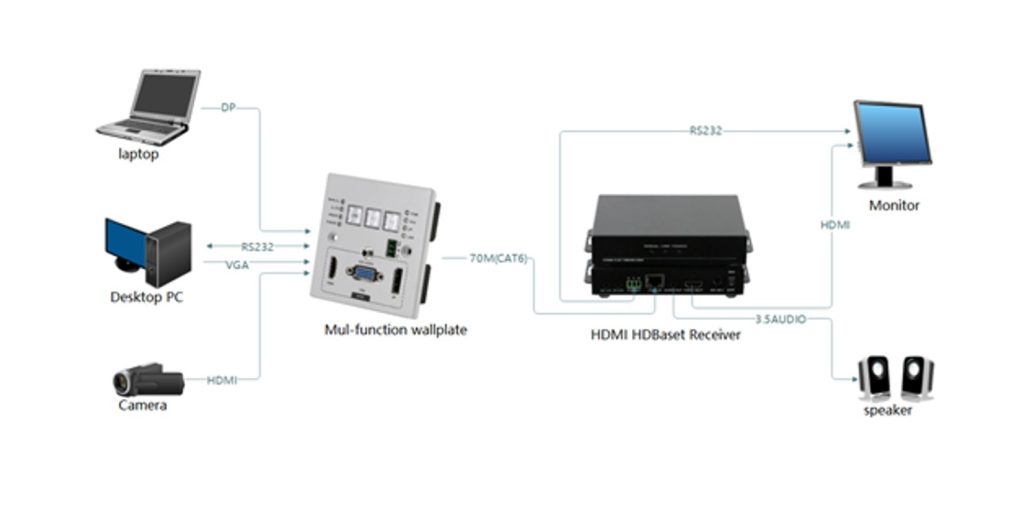

ATZ HDBT-E70-WPVD is a multiple functional switcher that switches input from different formats to display via HDBaseT. It supports 1x DP, 1x HDMI and 1x VGA+3.5mm audio inputs. It supports selection between HDMI, VGA and DP manually or automatically (last-in-first-out or Last-input priority if the current input device is turned off or unplugged). Supports resolution up to 4k@30hz, with POC(power over cable), and POE function, power only required at either end of HDBaseT Sender or Receiver. It can transmit up to 70m at 1080p@60, and 4K@30 to 40m.
Features:
- Supports 1080P 3D, and up to 4K30
- Supports HDCP1.4
- Transmission distance: 70m at 1080P60, 40m at 4K30 via Cat5e/Cat6
- Supports POC(power over Cable)
- LED working indicator
Specification
| Video | |
| HDMI Compliance | HDMI 3D, 4K |
| VGA Compliance | VESA |
| HDCP Compliant | Yes |
| Distance | 70m on 1080p@60Hz
40m on 4Kx2K@30Hz@24bit |
| Max Resolution | 4K*2K |
| Bandwidth | 10.2Gbps |
| Connectors | |
| Input | 1x HDMI
1x DP 1x VGA 1x Audio |
| Output | 1x HDBaseT (RJ45) |
| Mechanical | |
| Control | Button, Automatic |
| Dimensions | US type |
| Net Weight | 195g |
| Package Size | 204 x 151 x 60mm (L/W/H) |
| Gross Weight | 1.257lbs[330g] |
| Power | |
| Power Supply | DC 12V 1.5A |
| Environmental | |
| Operation Temperature | 32~131°F [0~55°C] |
| Storage Temperature | -4~185°F [-20~85°C] |
| Relative Humidity | 5~95% RH [no condensation] |
