Description

Features:

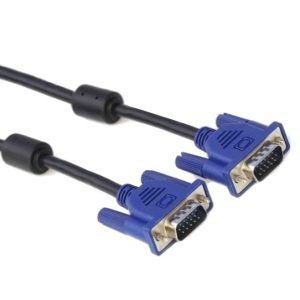

• Premium grade heavy duty VGA Cable with a High Density 15 way D connector (HD15) on both ends.
• Supports high resolution up to 2048 x 1536
• Superior cables with foil and braid shielding for maximum EMI/RFI protection
• Gold plated connectors and gold plated copper contacts ensure excellent conductivity
• Connectors: HD15 male to HD15 female molded connector
• Hood: PVC
• Ferrite cores fitted both ends to act as large inductance at high frequencies, so the core will suppress current spikes in the cables. Think of it as a “shock absorber” for very short spikes.
• Insulation: High Temperature Plastic, UL94V-0 rated
• Shell: Steel Alloy
• Contacts: Copper Alloy, gold plated over nickel
• Cable: UL Style 2919, three 75 Ohm Coaxial Cables and 4 or 5 or 7 Cores of 28AWG Conductors, overall aluminized Polyester Film Shield and Tinned Copper Braid Shield Plus Drain Wire, PVC Outer Jacket.
• Core: 17.5 x 28.5 x 9.5 (2M-10M) | 17.5 x 28.5 x 10.5 (15M-50M)
• Length: 2M/3M/5M/10M/15M/20M
