ATZ NET-RJP-C6-B
Price range: SGD 0.40 through SGD 26.00
AVAILABILITY: IN STOCK
Cat.6 RJ45 Unshielded connector plug w/load bar (1.05mm dia)
Description
Features:
- High quality & high performance plug/connector with insert Bar (1.05mm)
- Certified RoHS, UL, Reach and FCC Compliant
- Contact Gold plating: 50µ”
- Specially designed for Cat6 network cable
- Standard RJ45 connector, 8P8C wiring
- Supports transmission frequency up to 550MHz
- Complies with ANSI/TIA/ 568-C.2, ISO/IEC11801-2002
- Compatible to standard sockets, Standard RJ45 connector, 8P8C wiring
- Accepts 23AWG, 24AWG, 26AWG solid or stranded wire
- Application: 10/100 Base-T, Gigabit (1000Mbps) and 10GBASE-T 10-Gigabit Ethernet
Specification
- Material Housing: Polycarbonate 94-V2
- Material of contact: Brass C2680
- Material of Shield: C2680 Nickel Plating
- Dielectric withstanding Volt: 500AC
- Insulation Resistance: 500 Mega ohms
- Termination Resistance: 35 milli ohms max

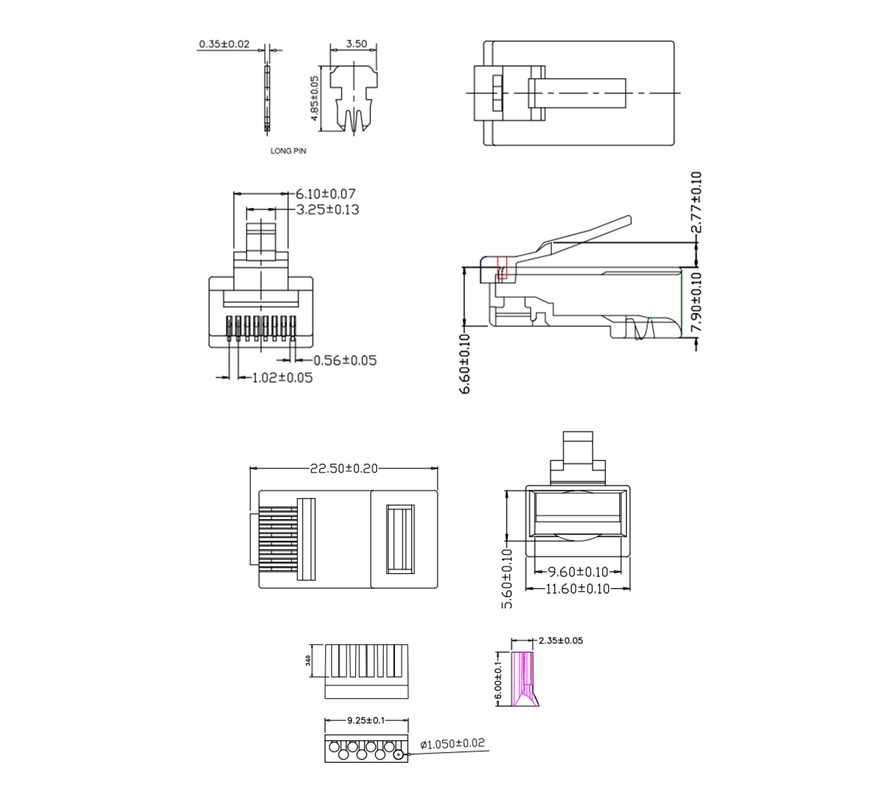

Product Drawing
