ATZ NET-RJP-C6
Price range: SGD 0.30 through SGD 19.00
AVAILABILITY: IN STOCK
Cat.6 – RJ45 Unshielded connector plug 8P8C (staggered)
Description
Features:
- High quality & high performance plug/connector
- Certified RoHS, UL, Reach and FCC Compliant
- Contact Gold plating: 50µ”
- Specially designed for Cat6 network cable
- Standard RJ45 connector, 8P8C wiring
- Supports transmission frequency up to 550MHz
- Complies with ANSI/TIA/ 568-C.2, ISO/IEC11801-2002
- Compatible to standard sockets, Standard RJ45 connector, 8P8C wiring
- Accepts 23AWG, 24AWG, 26AWG solid or stranded wire
- Application: 10/100 Base-T, Gigabit (1000Mbps) and 10GBASE-T 10-Gigabit Ethernet
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
Specification
- Material: Polycarbonate
- Cable-to-plug tensile strength: 20lbs (89N) (min)
- Durability: 750 matching cycles
- Temperature range: -40 ~ 60°C
- Gold plating: 50µ”

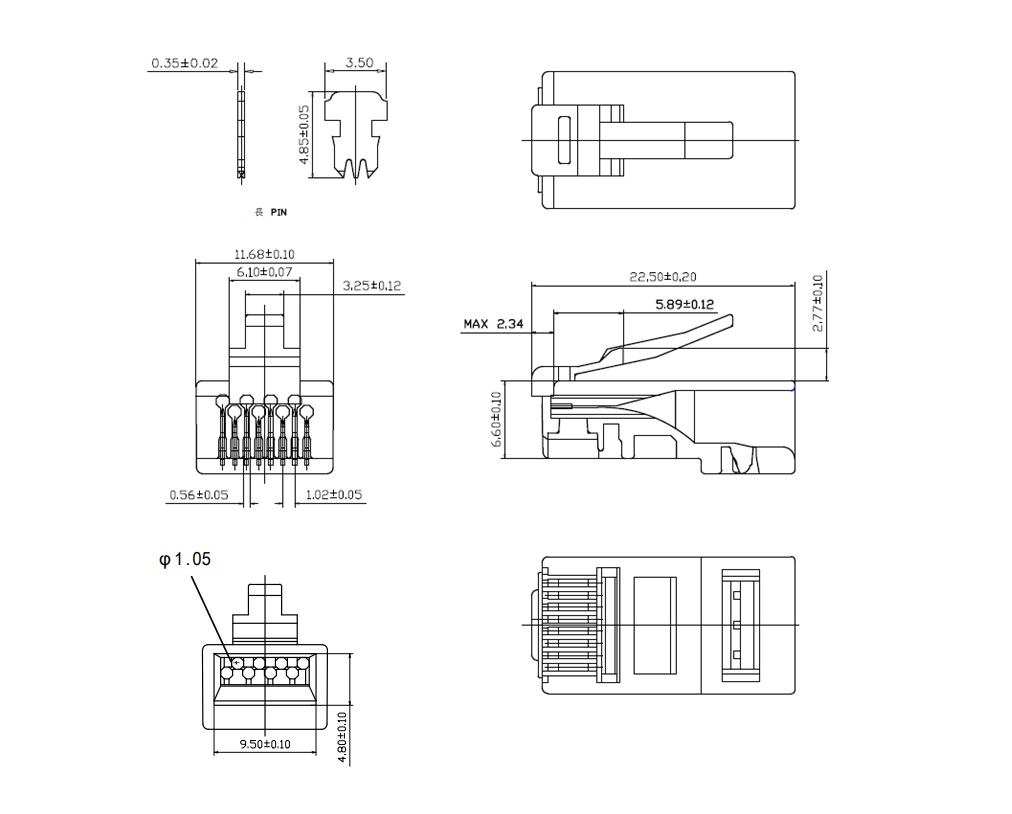

Product Drawing
