ATZ LKD19D2V
SGD 8,470.00
AVAILABILITY: IN STOCK
Dual Rail 19″ Dual Vertical Screen LCD Console Drawer + multi input DVI-D/VGA/Audio/USB Hub.
Description
*NOTE:
– LEADTIME MAY APPLY . ( 2-4 weeks for indent )
– IF STOCK IS REQUIRED URGENTLY, PLEASE CONTACT US DIRECTLY TO CHECK FOR STOCK AVAILABILTY BEFORE CHECKOUT.
Tel: 6659 8980 / Email: [email protected]
Features:
- 2U dual vertical 19 inch LCD Console Drawer
- 2 gas struts to support LCD when open
- Dual DVI & VGA Port
- 1280 x 1024 resolution
- Dual rail design, capable the LCD screen and keyboard tray operated independently.
- Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
- 104-key keyboard with touch pad mouse.
- USB 2.0 Keyboard & Mouse
- Build in 2x 2 watts speakers
Optional:
- Composite Video input
- HDMI or Display Port input
- 3G / HD / SD –SDI Broadcast grade input
- 48V, 24V or 12V DC Power
Additional information
| Weight | 19 kg |
|---|---|
| Dimensions | 73.5 × 59 × 21.5 cm |
Specification
| Part No. | ATZ LKD19D2V | |
| No. of ports | 1 | |
| KVM Connectors | 2 x DVI-D & 2x VGA / 1 x USB for KB & Mouse / 1x Audio | |
| LCD | Size | Dual 19 inch |
| Backlight | LED | |
| Resolution | 1280*1024 | |
| Max.color | 16.7M | |
| Luminance | 250 cd/m2 | |
| View Angle (H/V) | 170 / 170 | |
| Contrast Ratio | 1000 : 1 | |
| Port Selection | N/A | |
| USB HUB | Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device | |
| Audio | 1 x 3.5mm Audio jack | |
| KB/Mouse Emulation | USB 2.0 | |
| Rack Depth (rack cabinet front rails to rear rails) | 610mm to 940mm | |
| Power | 100-240V AC 50/60Hz via IEC Type power cord | |
| Environment | Operation temp: 0 to 50℃
Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|
| Physical Dimensions (W x H x D) / Net Weights ( KGs ) | 443x88x609mm / 14.5 | |
| Packing Dimensions (W x H x D)/ Gross weights ( KGs ) | 735x590x215mm / 19.0 | |
| Accessory | ||
| 1x 1.8meter IEC Type Power Cord 2x 1.8meter DVI Cable2x 1.8meter VGA Cable 1x 1.8meter USB Cable 1x 1.8meter Audio Cable |
||

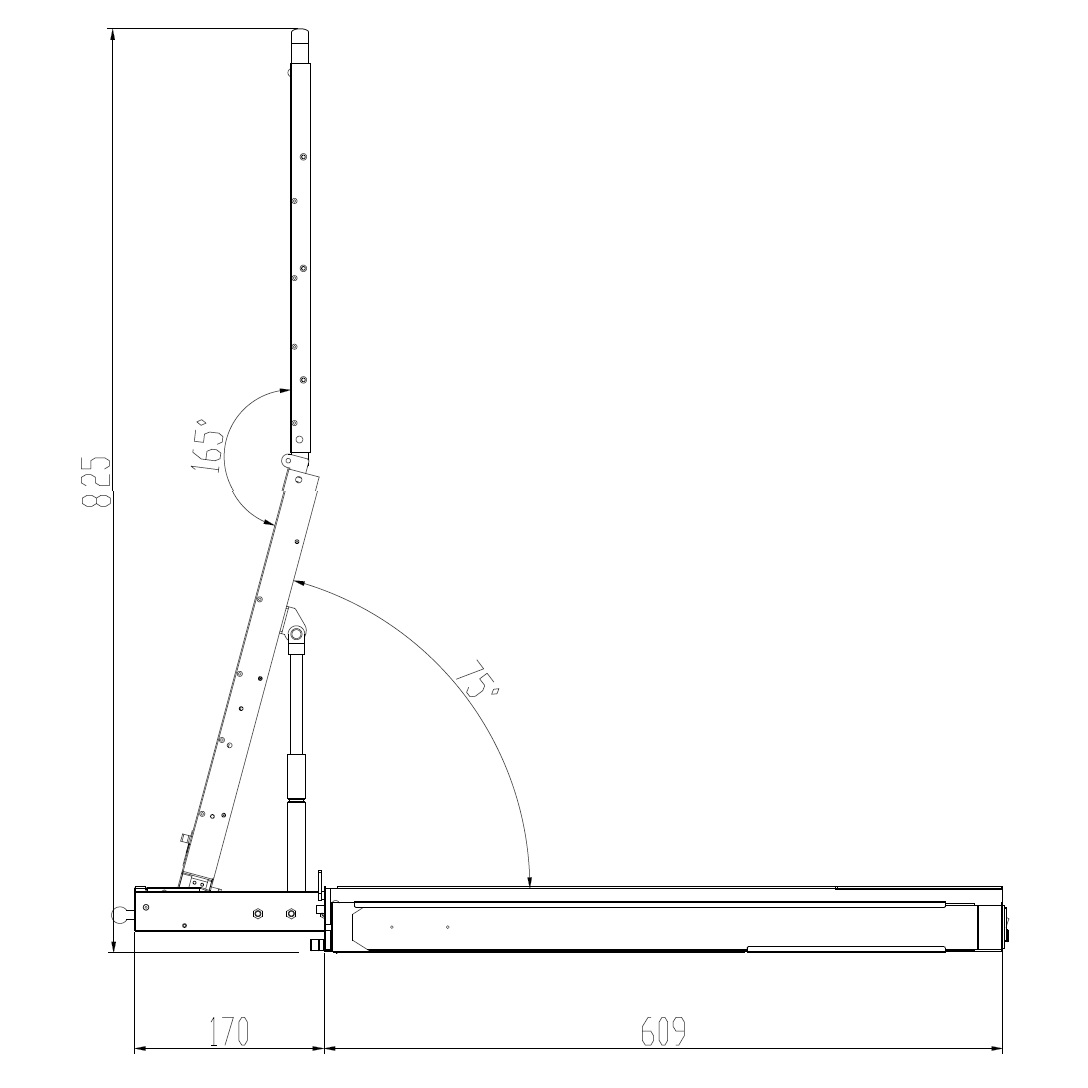

Application Diagram
