ATZ H31-21ST

SGD 40.00

AVAILABILITY: IN STOCK

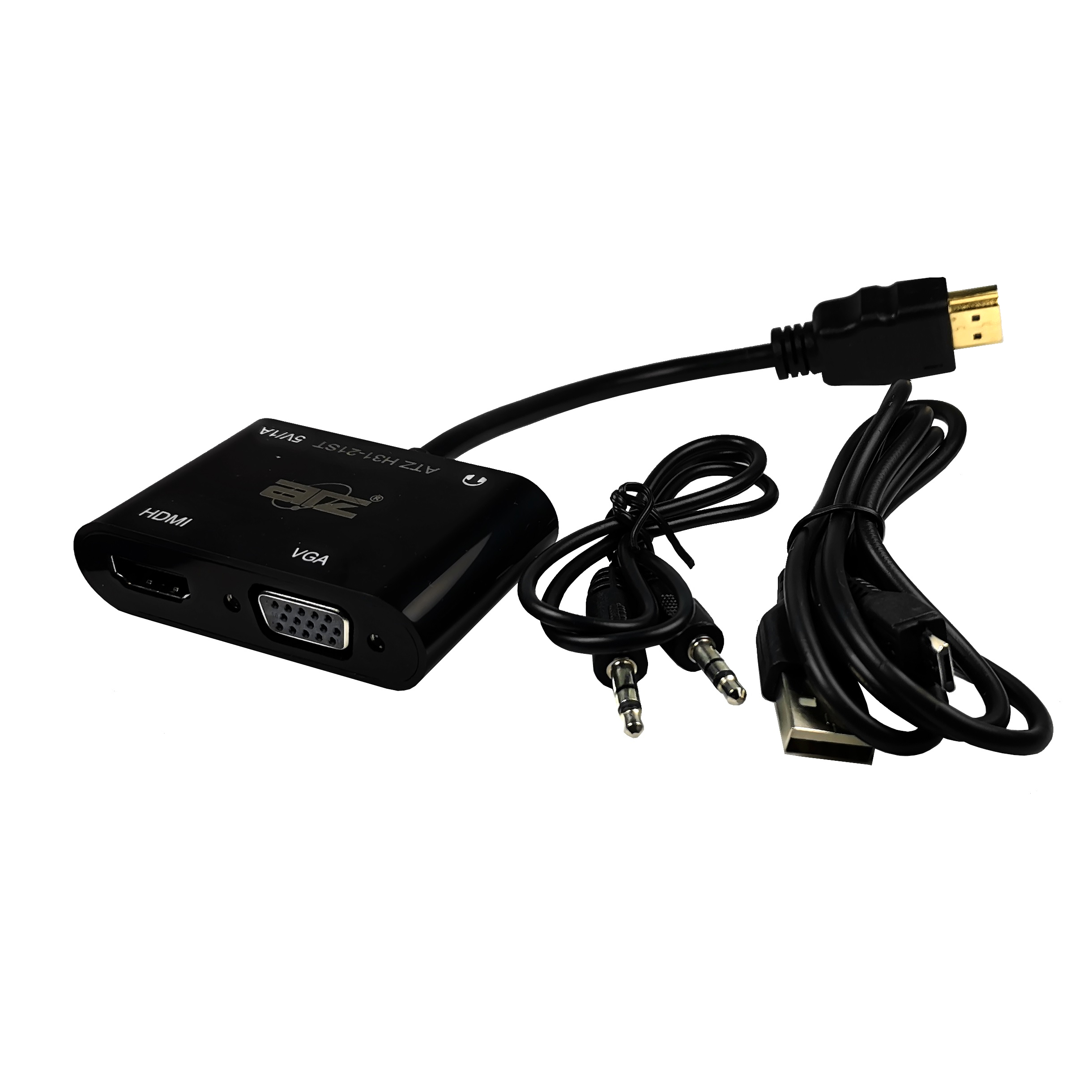

HDMI-A/Male to VGA+HDMI-A/Female Splitter w/ Audio extractor Adapter

Quantity:

Description

Exquisite portable design with built-in chipset allows you to connect HDMI output of PCs and laptops to be mirrored to both HDMI and VGA inputs of monitors, projectors and large-screen TVs simultaneously. Supports Plug and play.

NOTE:
Only support HDMI to HDMI+VGA, do not support reverse connection.

Features:

  • Splits signals simultaneously to both HDMI and VGA – to devices like HDTVs, monitors, Projector, for large high definition screen viewing.
  • Plug-and-play, automatically sense the native resolution of the display and scale the computer’s output to match it.
  • Connect the notebook to monitor/TV for working/gaming, with screen split sharing on separate screens
  • Need to connect micro USB power to operate
  • TVs and projectors can be connected to any HDMI or VGA port.
  • Built-in chipset supports SD/HD Audio and Video in 12-bit Deep Color up to 1080p (225Mhz TMDS clock)
  • Support LPCM and Compressed Surround Audio

Resolution Supported:

  • HDMI Output resolution up to 720p 60Hz, 1080p 30Hz or 1080p60Hz for HDTV/Projector/Monitor.
  • VGA Output resolution from 800*600 to 1920*1080.

Additional information

Weight 0.15 kg
Dimensions 20 × 15 × 5 cm

Specification

  • Connector input: HDMI A-Male
  • Connector outptut: VGA Female / HDMI A-Female / 3.5mm Female
  • Power required: 5VDC
  • Material: Plastic ABS
  • Dimension: about 63x40x15mm
  • Pigtail: 150mm
  • Weight: about 70g

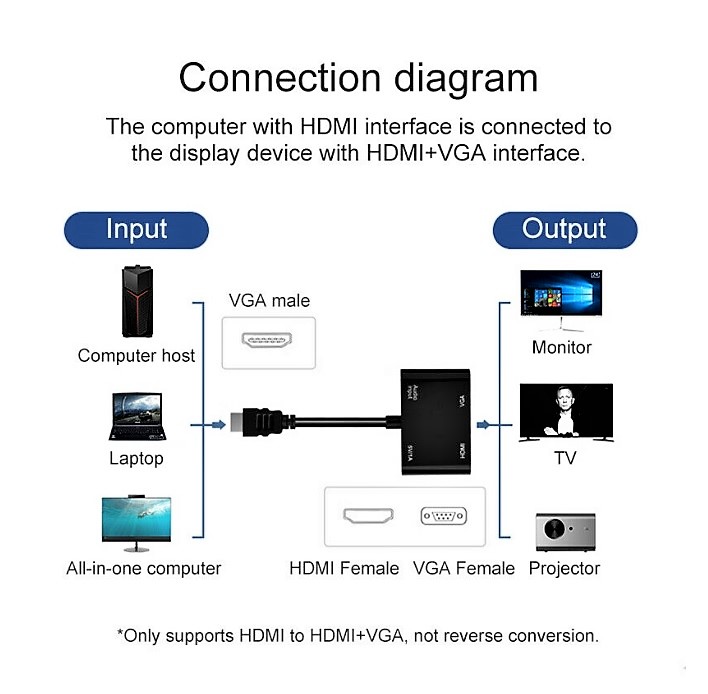

Application Diagram
