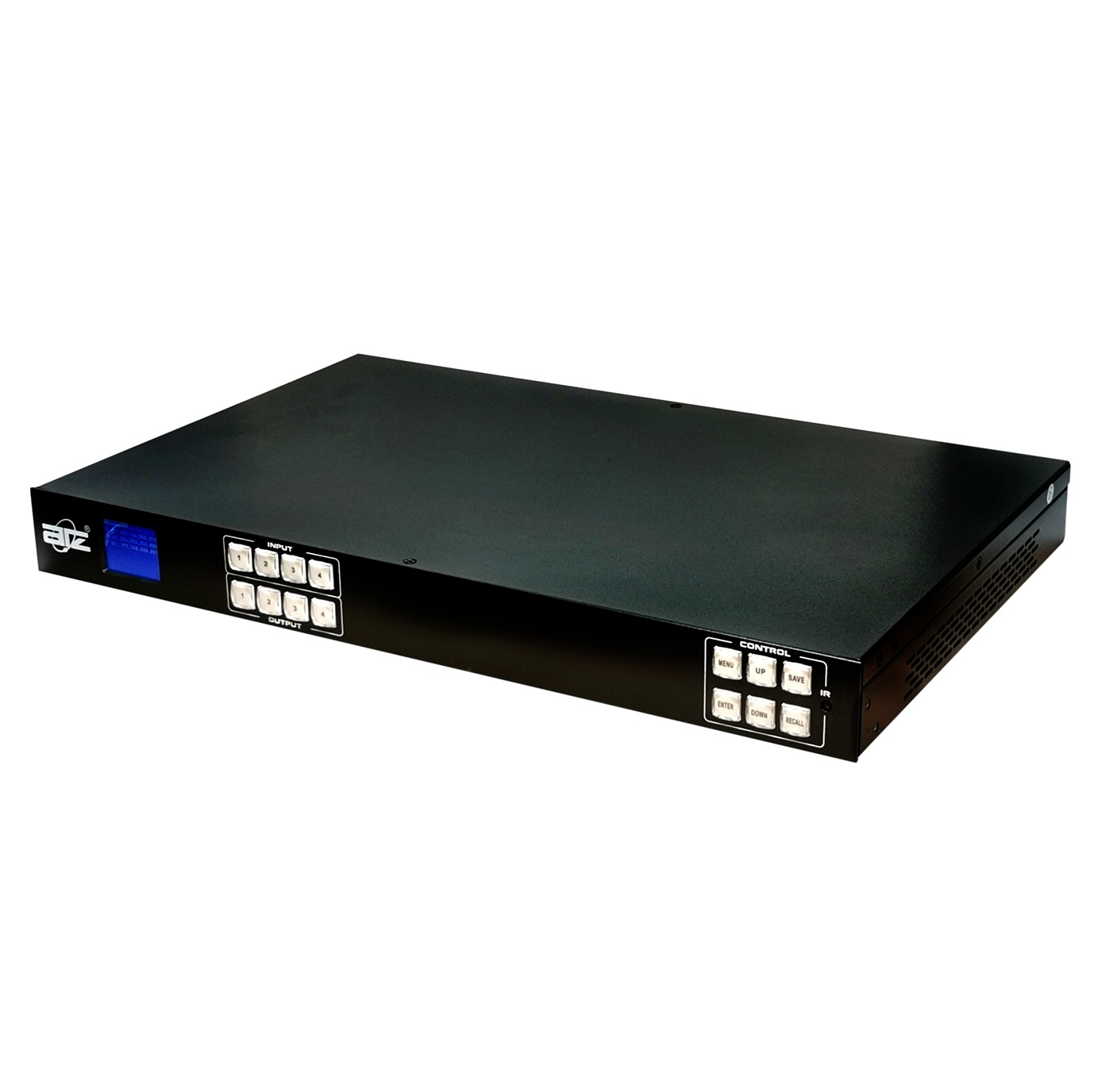

ATZ HDMI-V2-44SMPR-TW
SGD 1,710.00
AVAILABILITY: IN STOCK
4×4 HDMI2.0 SEAMLESS HDMI Matrix Switch 4K@60 18Gbps, Video Wall, Multiviewer, Scaling
Description
Product Introduction
This is a new fixed 4K60 4:4:4: HDMI matrix switcher with 4 HDMI2.0 inputs and 4 HDMI2.0 outputs, the resolution can up to 4K60Hz 4:4:4 and all ports are HDCP2.2 compliant. With the friendly user control methods by IR remote control, 2-Press push buttons with background blue light, WEB GUI, APP and RS232/UDP commands, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.
Product Features:
- 4x HDMI2.0 inputs with 3.5mm audio embedded for each input
- 4x HDMI2.0 outputs with 3.5mm audio de-embedded for each output
- Supports HDMI2.0, HDCP2.2
- The resolution can up to 4K@60Hz 4:4:4
- Supports seamless switching, video wall and multi-view
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital and DTS-HD Master Audio
- Supports IR remote control(IR remote control codes are available)
- Supports smart EDID management
- Supports RS-232 and TCP/IP Control(WEB GUI, APP and IR remote)
- Supports 2-press push buttons control with blue lights
- Supports to rename the inputs and outputs, scenes
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 60 × 40 × 10 cm |
Specification
| Name | 4K60 18Gbps 4X4 Seamless HDMI Matrix |
| Input Resolution | 480i,576i,480p,576p,720p,1080i,1080p@24/30/50/60Hz, 1080P3D@60Hz,4K@30Hz,4K@60Hz |
| Output Resolution | 720×480@50，720x576p@50，1024×768@60，1280×720@60，1360×768@60，1920×1080@30，1920×1080@50，1920×1080@60，1920×1200@60，2560×1080@60，2560×1440@60，2560×1600@50，2560×1600@60，3840×2160@24，3840×2160@25，3840×2160@30，3840×2160@50，3840×2160@60，4096×2160@30，4096×2160@60 |
| Input ports | 4*HDMI2.0 with 4*3.5mm |
| Output ports | 4*HDMI2.0 with 4*3.5mmaudio |
| Weight | 3.4KG |
| Power Consumption | 10W (no load) 25W (full load) |
| Power Supply | 12V/3A |
| Transmission distance | 10m/30ft for 4K60, 15m/45ft for 1080P@60Hz(by qualified HDMI cables) |
| Bandwidth | 18Gbps |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Controlling | Front-panel push buttons, IR Remote, RS232, TCP/IP and APP |
| Dimension(mm) | 440 * 279 * 44mm
|
| Operating Temperature | -5 to +40°C(23 to +104 °F) |
| Storage Temperature | -10 to +60°C(-14 to +140 °F) |

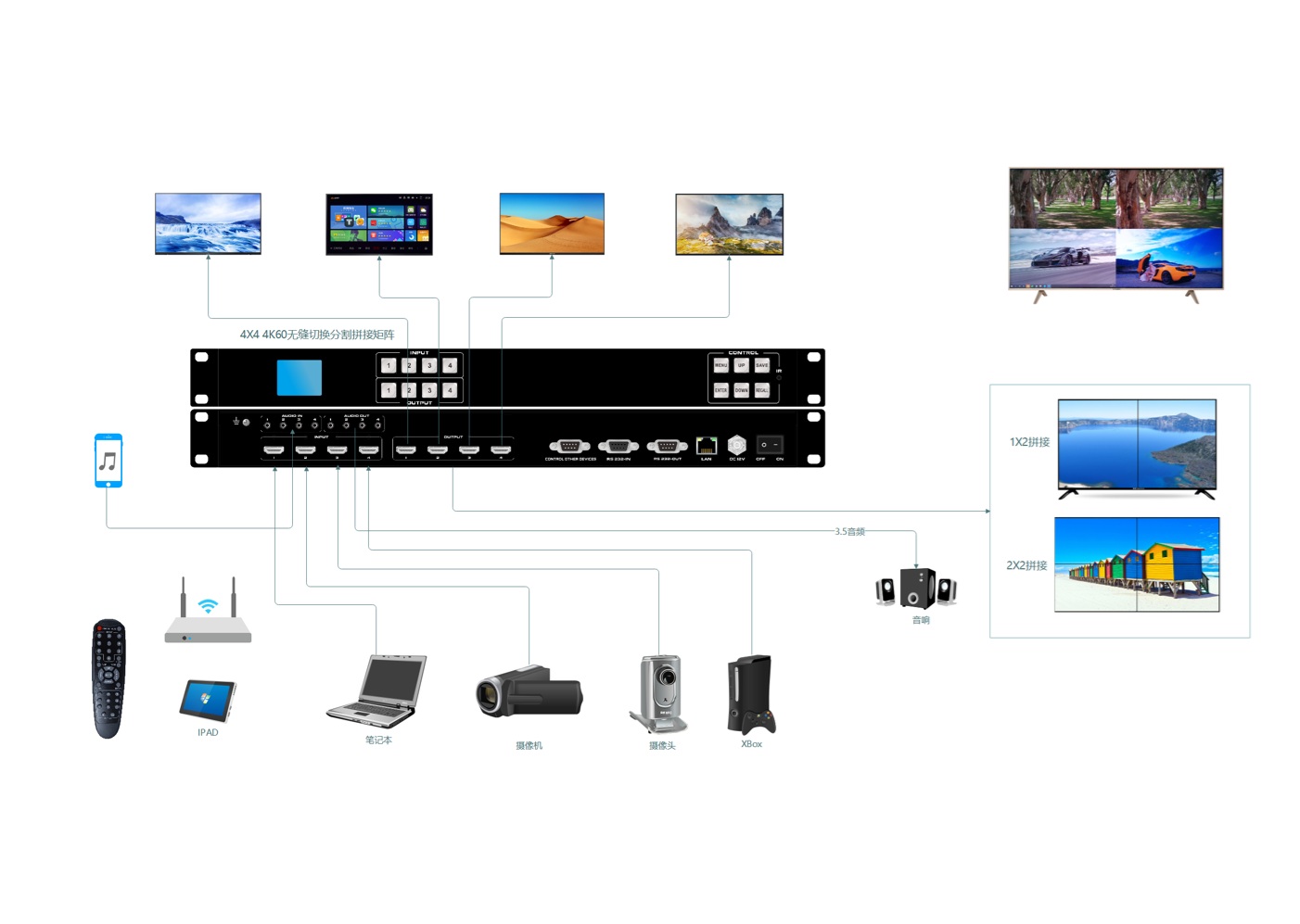

Application Drawing
