ATZ HDMI-V2-44
SGD 395.00
AVAILABILITY: IN STOCK
4×4 HDMI2.0 Matrix Switch 18Gbps 4K@60Hz (4:4:4)
Description
The 4×4 HDMI Matrix supports the transmission of video signal (up to 4K2K@60Hz YCbCr 4:4:4) with multichannel digital audio from up to four high definition sources to up to four HDMI outputs. Each output supports downscaler functionality. It can display the same or different screen on four displays (the user can choose the display screen for any signal source). Also, the product has distribution mode and switching mode.
Features:
- HDCP 2.2 compliant
- Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
- HDR, HDR10, HDR10+, Dolby Vision passthrough
- Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Support 4K -> 1080P Downscaler
- Support advanced EDID management
- Flexible control via panel or IR remote control
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 24 × 7 cm |
Specification
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz(YCbCr 4:4:4),[email protected] HDMI 3D TV format, etc. |
| Color Space | RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)] |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats | PCM2.0, Dolby Digital / Plus, DTS |
| L/R Audio Formats | PCM2.0CH (Note: If ARC function is turned on, the audio port will mute.) |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge) |
| Connections | |
| Input Ports | 4×HDMI Type A [19-pin female] |
| Output Ports | 2×HDMI Type A [19-pin female]
1×L/R audio out [3.5mm Stereo Mini-jack] 1×OPTICAL audio out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 251mm(W)×105mm(D)×20mm(H) |
| Weight | 620g |
| Power Supply | Input: AC100~240V 50/60Hz
Output: DC12V/1A |
| Power Consumption | 3.8W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

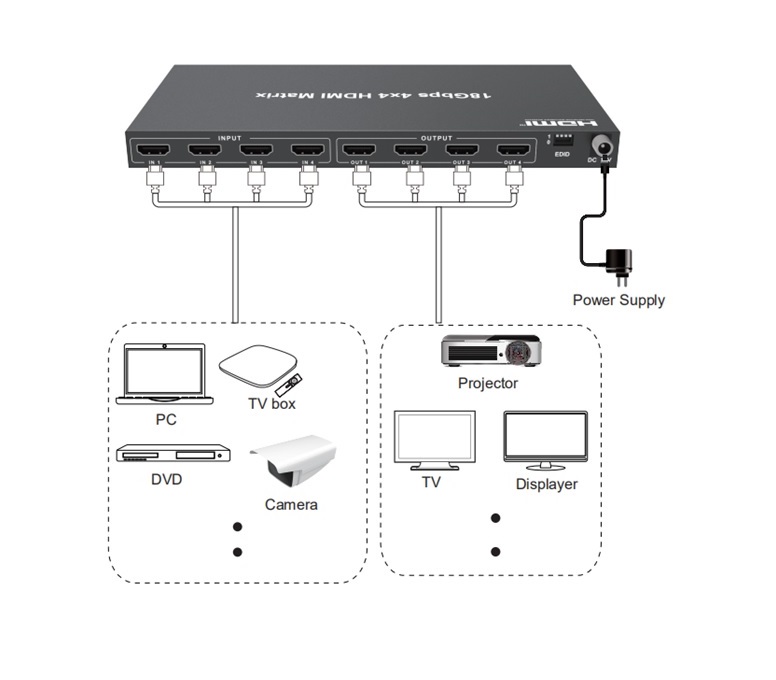

Application Diagram
