ATZ HDMI-E100W

SGD 380.00

AVAILABILITY: IN STOCK

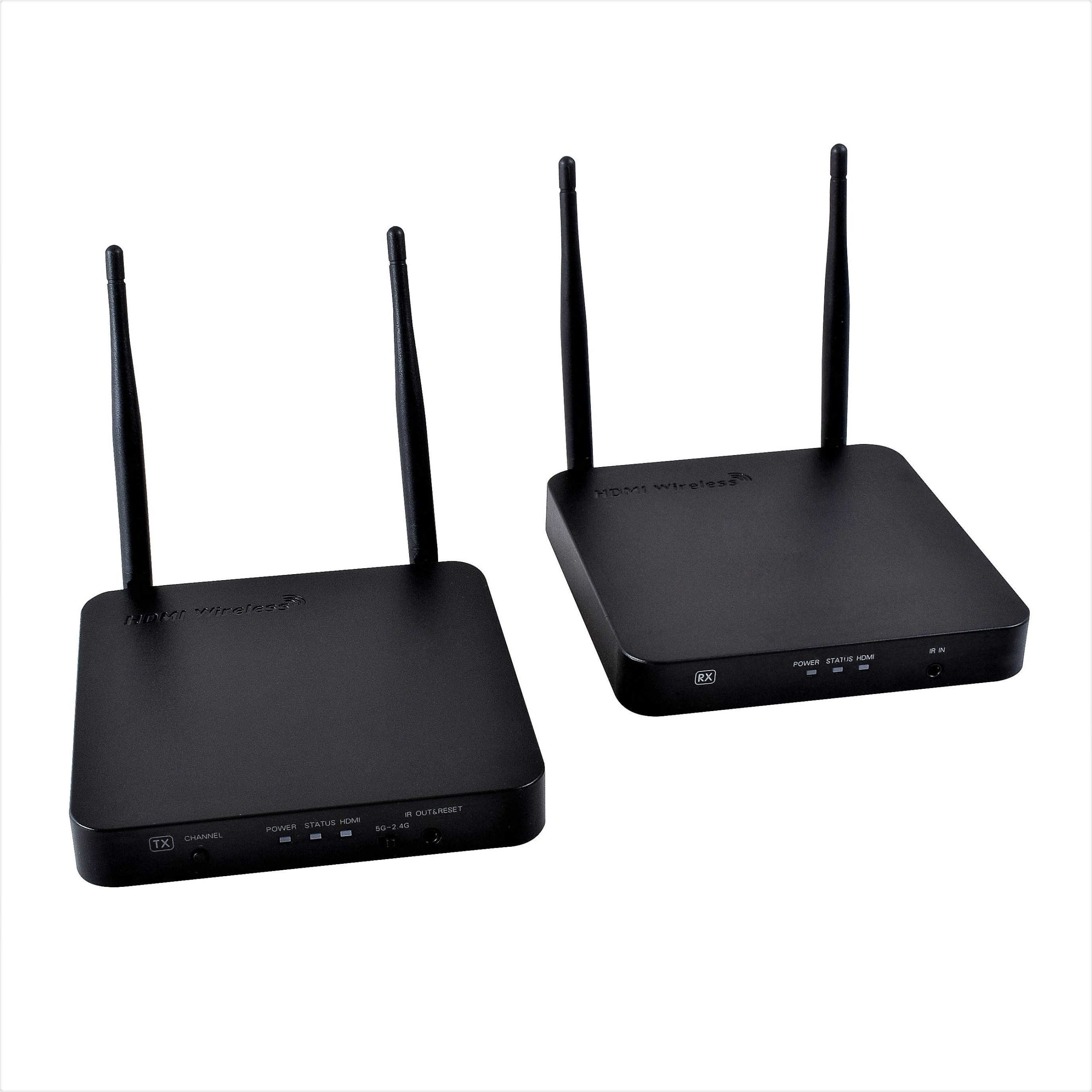

HDMI Wireless Extender 100M

Quantity:

Description

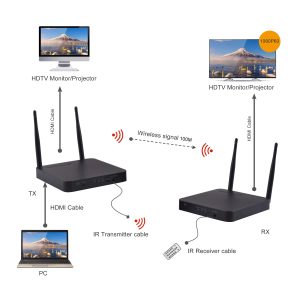

Experience transmitting HDMI signal wirelessly in High-Definition video and audio to any
HDTV displays up to 100 meters away.

The extender uses TCP /IP standard Wireless Transport Protocol, so it has high transmission rate and strong anti-interference capability. It has HDMI loop-out port with IR capability to control source devices remotely. The HDMI Wireless Extender is widely applicable for office presentation, lecture, education, conference, family entertainments etc.

Features:

  • HDMI loop output: for local screen monitor
  • Support HDMI resolution: 480i/576i~1080P@50/60Hz and SVGA~WUXGA
  • Digital 2.4G & 5GHz dual frequency wireless A/V transmission, high transmission rate and strong anti-interference capability
  • External dual – gain antennas. Full HD 1080p transmits up to 100 meters wireless in open space.( May be affected by the use environment)
  • Extends wide-band infrared remote to control source device from display side
  • Support OSD for device status
  • Plug and Play – no software installation required
  • Supports both panel settings and Web Configuration Interface, Simple and easy to use.

*Remarks: For Export Only and not for use in Singapore

Additional information

Weight 0.5 kg
Dimensions 24 × 17 × 7 cm

Specification

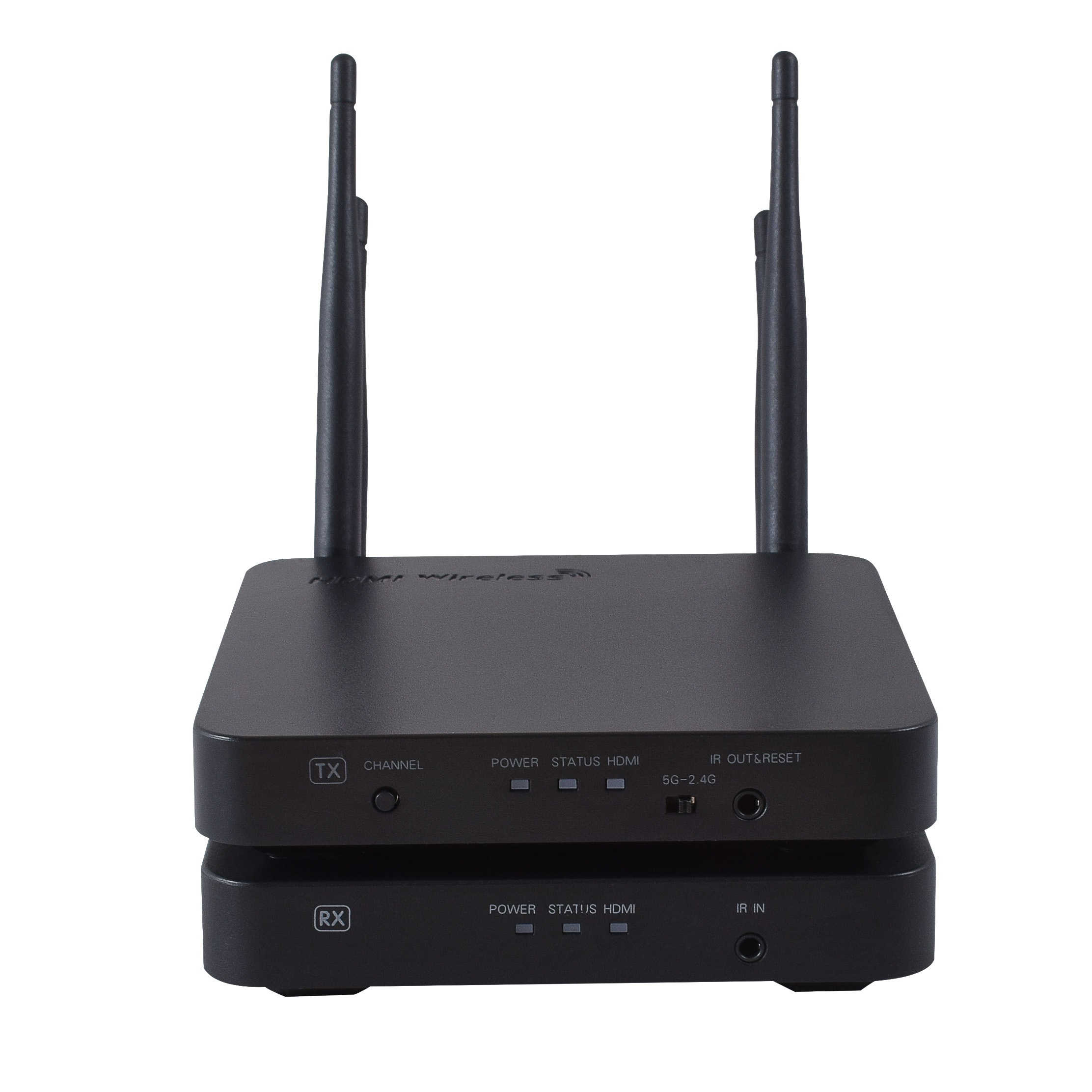

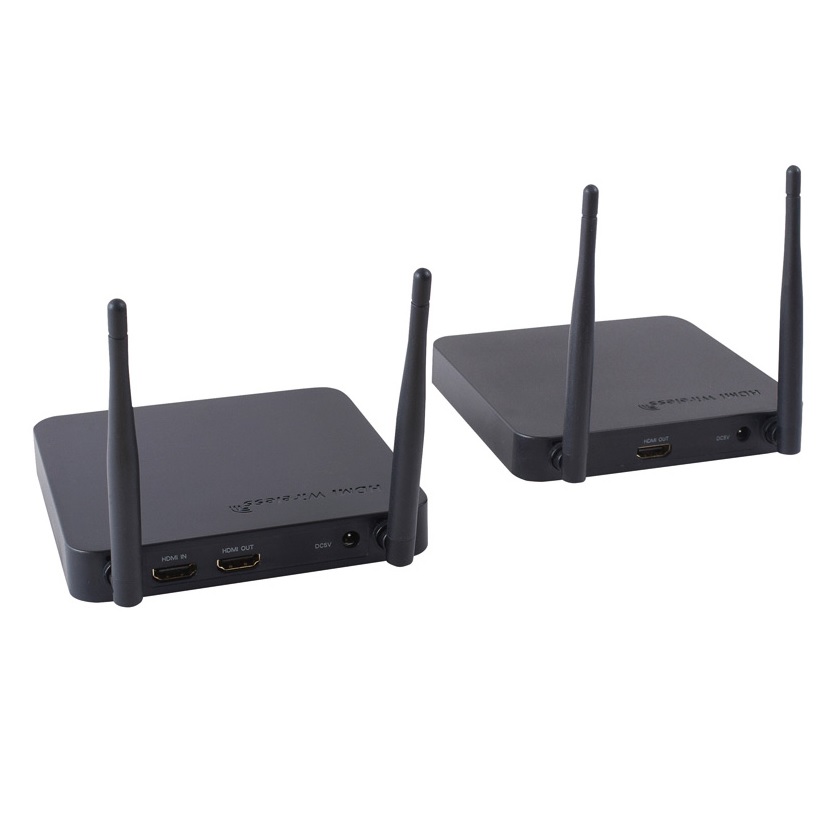

Transmitter Unit 1x HDMI input + 1x HDMI loop out
Reciever Unit 1x HDMI output
HDMI resolution 480i/576i…1080P@50/60Hz and SVGA~WUXGA
HDMI Audio Format LPCM2.0/48KHz/16Bit
HDMI Max bandwidth 225MHz
HDMI Max baud rate 6.75Gbps
Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal 5Volts p-p (TTL)
HDMI output cable distance ≤15m AWG26 HDMI standard cable
Antenna type External dual 3dBi gain antenna
Wireless standard IEEE 802.11a/b/g/n
Operational frequency 2.4G/5G dual frequency
Operational range Up to 100M in open space
Latency (delay) <200 ms
Infrared retourfunction frequency range 20-60KHz
Video compression Comparable with H.264
Max Data rates 2T2R up to 300Mbps
Transmit Output Power(IPEX) 16±2dBm
Transmission distance up to 100m (in open space)
IR Carrier frequency 20-60KHz
TX/RX Max working current 1A
Power adapter format Input AC 100V~240V 50HZ/60Hz, DC5V/2A
Operating Temperature range -5 to +45℃
Storage Temperature range -20 to +60℃
Operating Humidity range 10 to 90%RH (No Condensation)
Storage Humidity range 5 to 95%RH (No Condensation)
Case Dimension (L x W x H) 127.5×127.5×25 (mm)
Weight TX176g/ RX170g
