ATZ HDBT-E100-RW
AVAILABILITY: IN STOCK

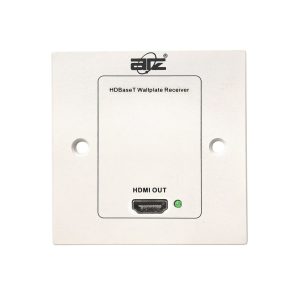

HDBaseT™ Receiver 100m Wall Plate (100m @1080p60/ 70m @4K60 4:2:0)
Description
This HDBaseT Wallplate Receiver supports 1x HDMI output with LED indicators. The resolution can up to 4k@60hz, with the POC(power over cable) function – users can opt for power either from HDBaseT Transmitting end or from Receiver. The transmission distance is up to 100m at 1080p60, and for 4K60 (4:2:0) it can transmit up to 70m over single Cat6/6a/7 cable. This HDBaseT Wallplate Receiver is popularly used for small meeting room, classroom or other long distance transmission applications.
Features:
- Supports HDMI output
- Supports HDCP1.4 1080P 3D, 4K30, 4K60 (4:2:0)
- Transmission distance: 320ft/100m at 1080P60, 220ft/70m at 4K60 (4:2:0) via Cat6/6a/7
- Supports PC software preset via RS232
- Supports POC (power over Cable)
- LED working indicator
Specification
| Input | 1x HDBaseT (RJ 45) |
| Output | 1x HDMI |
| Resolution | Up to 4K60Hz(4:2:0) |
| Transmission distance | 320ft/100m at 1080P60, 220ft/70m at 4K60 (4:2:0) via Cat6/6a/7 |
| Bandwidth | 10.2Gbps |
| Power Supply | DC 12V 1.5A |
| Power consumption | ≤12W |
| Dimension (WxHxD) | UK panel Size: 86*86*33mm |
| Product weight | 200g/0.45lbs |
| Operating Temperature | -10℃ to 40℃ |
| Storage Temperature | -25℃ to 55℃ |

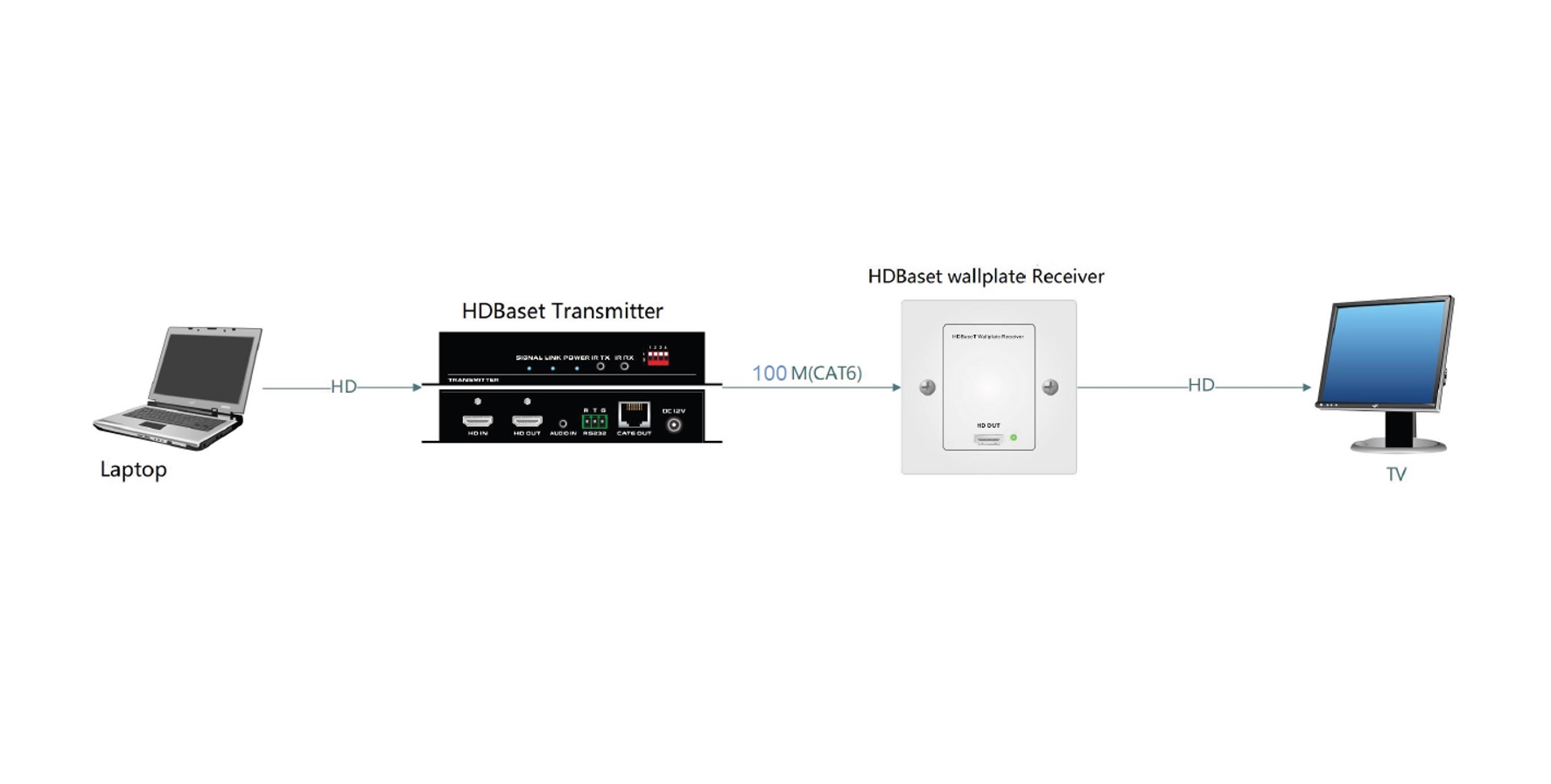

Application Diagram
Price
Please call or email us for price.
Reseller enquiries are welcomed!
