ATZ AOC-USB3AMAF-xxM

SGD 179.00SGD 316.00

AVAILABILITY: IN STOCK


USB Type A-Male to Female AOC 10Gbps, 5V/900mA, Downward compatible with USB2.0/1.1 (5M/8M/10M/12M/15M/20M/25M/30M/35M/40M/45M/50M)

Clear

Quantity:

Description

*NOTE:
– LEADTIME MAY APPLY . ( 2-4 weeks for indent )
– IF STOCK IS REQUIRED URGENTLY, PLEASE CONTACT US DIRECTLY TO CHECK FOR STOCK AVAILABILTY BEFORE CHECKOUT.
Tel: 6659 8980 / Email: [email protected]
___________________________________________________________________________
ATZ Type A-Male to A-Female Active Optical Cable (AOC) is a USB 3.2 Gen 2×1 electrical to optical conversion module. This product can translate signals between USB 3.0 electrical and optical signals. AOC is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fiber for signal transmission. AOC offer a quick solution to support cable connections for USB3.2 application. This hybrid USB fiber cable length can support up to 50m max, with USB 3.2 version and also downward compatible with USB 2.0/1.1.
Chip technology is capable of realizing mutual conversion between USB3.0 and USB2.0 protocols on remote side device, so as to enable USB2.0/1.1 equipment to share the Super speed bandwidth (10Gbps) of USB3.2.

The intended use of this cable is to connect/extend USB huddle cams and/or other USB conference devices, such as webcams or digital conference phones with the operating hardware located far away, e.g. in a separate rack room. These long distances can now be achieved and in combination with the AV connection.

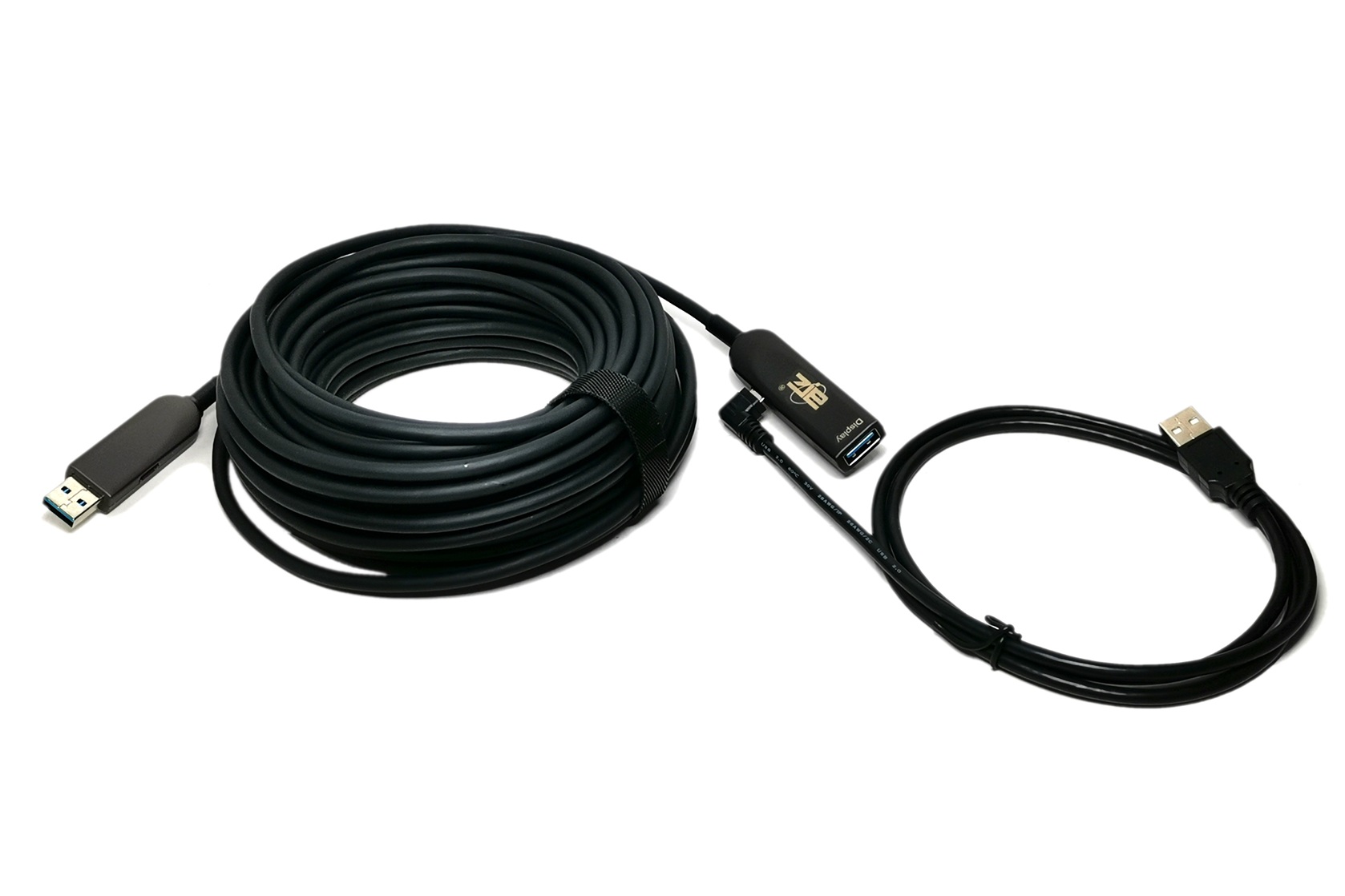

* Note: Most USB devices can be powered by the connected source device and may not require external power. If additional power is needed, a USB-A to micro cable is provided to supply buffer power externally — for high powered commercial USB cameras and devices.


Features:

  • Extends USB 3.2 Gen 2×1, 10Gbps and lengths up to 50m
  • Support all USB 3.2 devices, downward compatible with USB 2.0/1.1(for ≥20m, downward compatible to USB2.0 only)
  • Support all major operating systems: Windows, Mac OS, Linux
  • Cable OD: 4.5mm (4 Fiber + 4 Copper wire)
  • Hybrid copper and fiber cable, anti-interference, no radiation, strong resistance to EMI
  • Plug and Play, requires no external power supply.
  • Ideal for a wide variety of USB devices, from printer, scanners, hard drives, and audio devices, to touch screens, web cams, and game controllers

 Applications

  • Industrial Control
  • Digital Signage
  • Home Network Integration
  • Medical Device Connectivity
  • KVM Extension
  • Remote Desktop USB 3.0 and USB2.0 Connections
  • Security: web camera, access control
  • USB 3.2 & USB2.0/11 Device Sharing: print, scan, storage

Additional information

Length

5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m, 35m, 40m, 45m, 50m

Specification

Description USB3.2 Hybrid Active Optical Cable A Male to A Female downward compatible version
Connector USB 3.0 Standard-A Male to A Female plug
Max. data rate 10Gbps
Range 50m over multimode optical fiber
Optical Transceiver 850 nm VCSEL (multimode)
Cable diameter 4.5 mm
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F).
Humidity 5% to 90% (non-condensing)

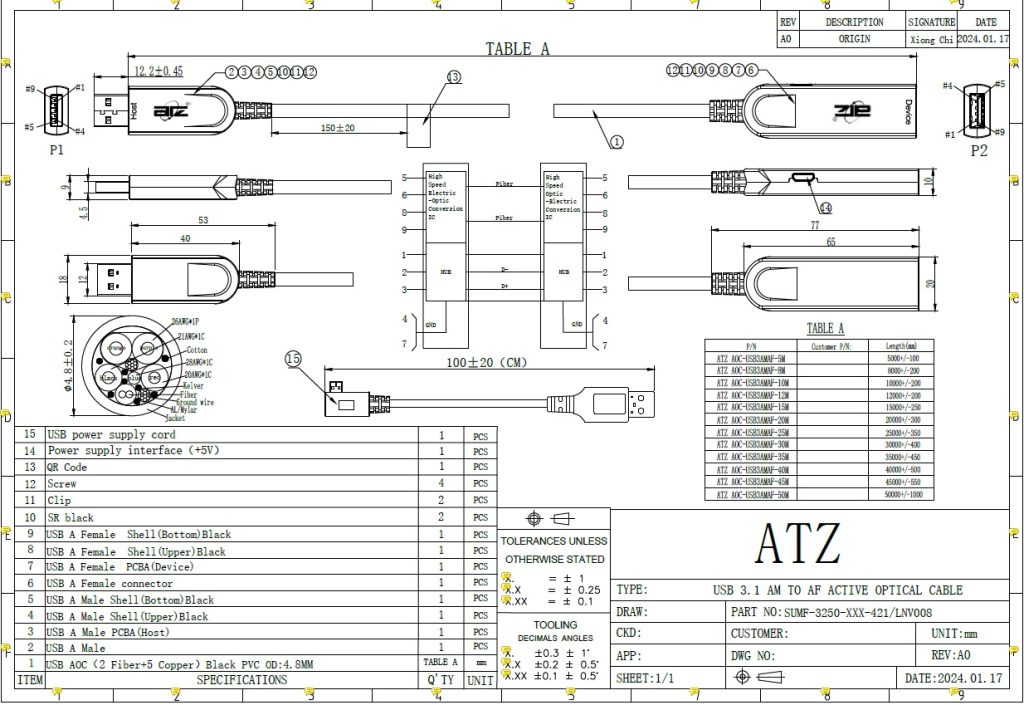

Cable Drawing
