ATZ VS2032

SGD 160.00

AVAILABILITY: IN STOCK

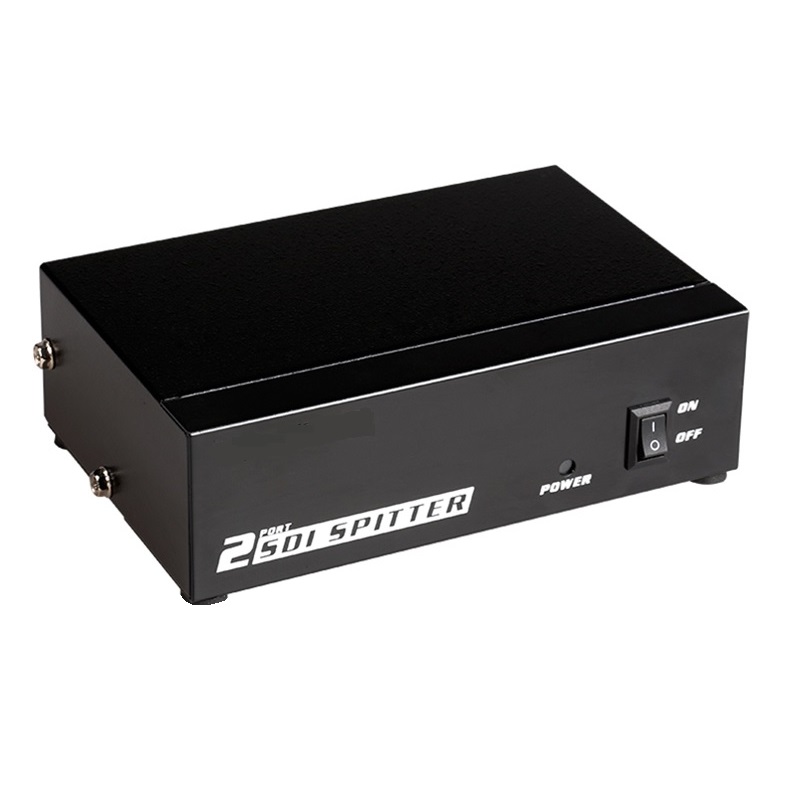

2 port SDI splitter

Quantity:

Description

Designed for professional SMPTE video applications, this 3G SDI 1×2 splitter allows you to distribute a single SDI video source to 2 SDI video monitors This splitter supports bit rates up to 2.970Gbps and supports SD-SDI, HD-SDI and 3G-SDI video signals

Features:

  • Allows you easily display your work on common HDMI displays
  • Supports bit rates up-inch 2.970Gbps
  • Supports SD-SDI HD-SDI and 3G-SDI video signals
  • Allows you-inch view the original SDI content on an SDI monitor simultaneous with the HDMI display

Additional information

Weight 0.38 kg
Dimensions 15 × 10 × 10 cm

Specification

  • SDI input: BNC SDI x 1
  • SDI output: BNC SDI x 2
  • Resolutions: 480i/576i, 720p at 50/60Hz, 1080i at 50/60Hz, 1080p at 24/25/30/50/60Hz
  • SDI standards: compatible with SMPTE424M, SMPTE292M and SMPTE 259M
  • SDI signal format: SDI-SDI, HD-SDI and 3G-SDI
  • Working temperature: 0 to +60°C
  • SDI rate: 143-2970MHz
  • SDI resistance: 75Ψ
  • Input: 1000mA
  • Power: 5V DC
  • SDI signal output range: 800mVp-p
  • SDI extender supports: 400m
  • Industrial power: durable and stable power supply
  •  Dimension: (130 x 100 x 40)mm
  • Weight: 330g
